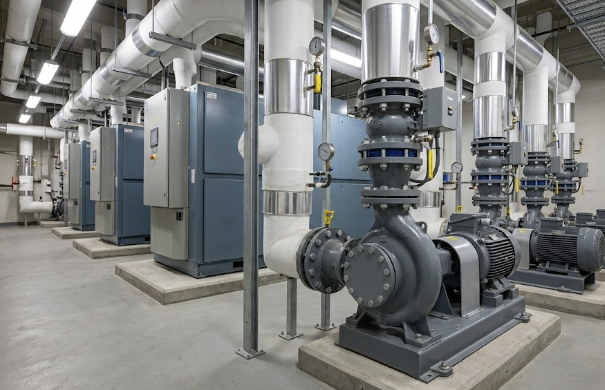

Walk into the mechanical room of any large building, an office tower, a hospital, a university hall, and you will recognize the same components: chillers, pumps, a tangle of insulated pipe, and flanged joints everywhere you look. Many of these things you might not even be able to name even if you know what they look like. Nobody thinks about the flanges and fittings on this machinery until one of them weeps onto the housekeeping pad. We generally all just expect this stuff to work. The flange selection in a hydronic system is not arbitrary, and a couple of them will crack expensive equipment if you end up picking the wrong ones. The right BOM is key here.
Quick clarification before we start, because the word does double duty in this trade: this is about the pipe flanges that join hydronic piping to pumps, chillers, and valves, and not so much the sheet-metal duct flanges that join air handling ductwork. Two different worlds within the same industry. Today. we are in the water side. (For the specific case of hyperscale data center cooling, which runs into much larger diameters beyond a mechanical room, see our piece on flanges for data center cooling.)
The Systems, and Where Flanges Show Up
Commercial HVAC moves heat with water and sometimes steam. The main loops are chilled water (CHW) between the chillers and the air handlers, condenser water between water-cooled chillers and the cooling towers, and hot water for heating. Each one is a closed or semi-closed piping circuit, and each one connects to rotating and heat-transfer equipment. The largest components you can usually see outside near a city center.

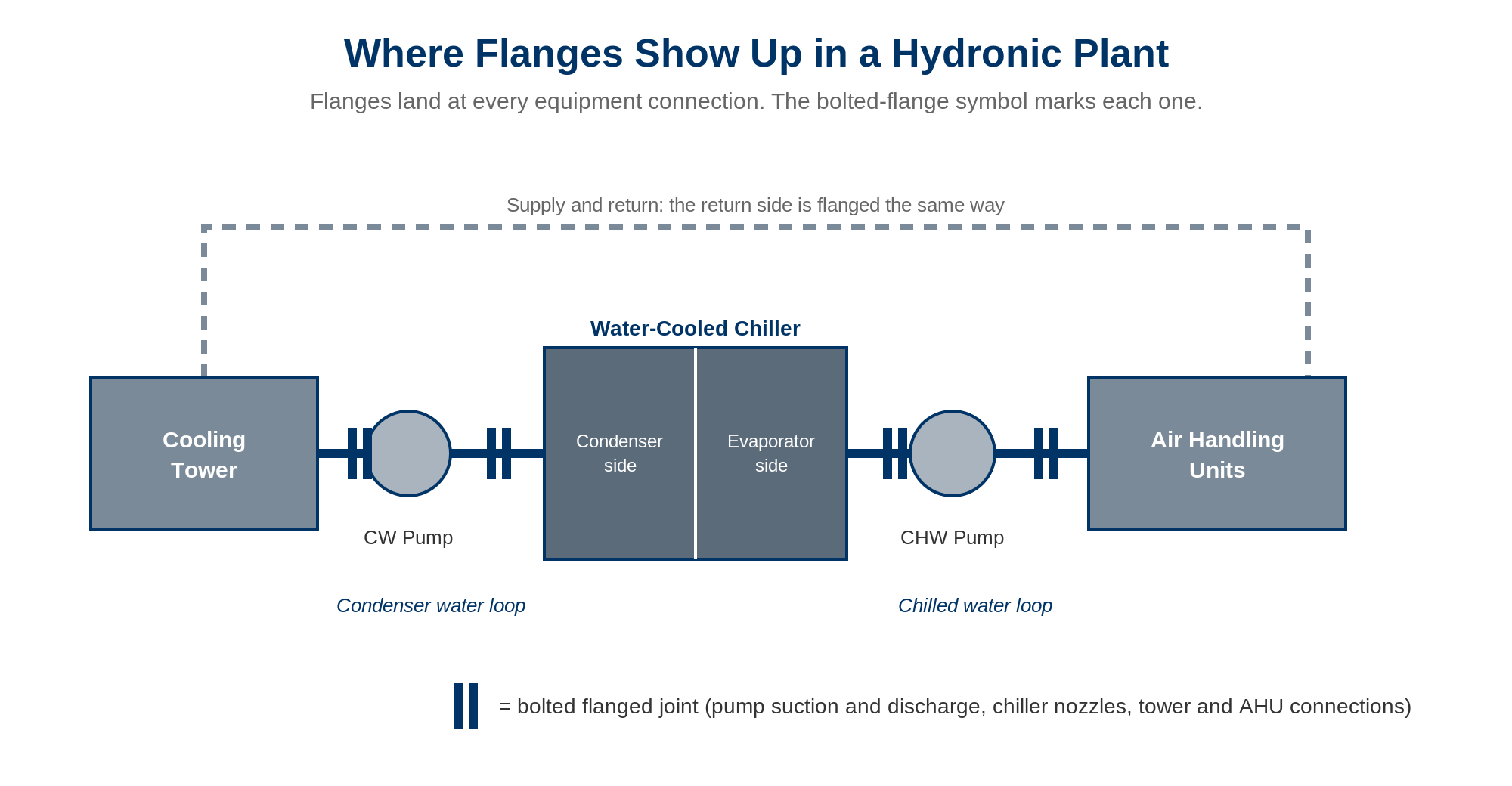

The flanges live at all of those connections. Pump suction and discharge, chiller evaporator and condenser nozzles, cooling tower inlets and outlets, heat exchangers, large butterfly and triple-offset valves, strainers, and air separators all land on flanged joints once the pipe gets large enough, or bends in the system are present to save space. Smaller branch piping is usually grooved, threaded, or soldered, but the mains and the equipment connections are where flanges do the work, typically anywhere from 3 inch up through 24 inch and beyond on a big central plant.
Why Almost Everything Is Class 150
Here is the good news for HVAC procurement: the pressures are usually pretty low. A typical hydronic system operates well under 200 psi, so Class 150 flanges cover the overwhelming majority of the building. Forged carbon steel, ASTM A105, in Class 150 weld neck or slip-on is the default across chilled water, condenser water, and even most heating hot water service. Some AWWA spec flanges work as well.
The exceptions are worth knowing. A tall building has real static head: the weight of the water column itself adds pressure at the bottom of the riser, and a high-rise pump system can push a low-zone connection past what Class 150 wants to see, which is why you will occasionally find Class 300 flanges specified down in the basement of a tall tower. Steam and high-temperature heating water also bump the class up. When in doubt, the operating pressure plus the static head, not just the pump rating, sets the class.
The Cast Iron Trap
This is the one that bites people, and it is worth the whole section. Pumps, valves, and other equipment in HVAC are very often cast iron, and cast iron equipment flanges are flat faced, almost always to the old Class 125 cast iron bolt pattern, which happens to match Class 150 steel drilling. The modern ASME B16.5 was born out of B16.1 where cast iron was commonplace, and not so popular these days with modern engineering standards.

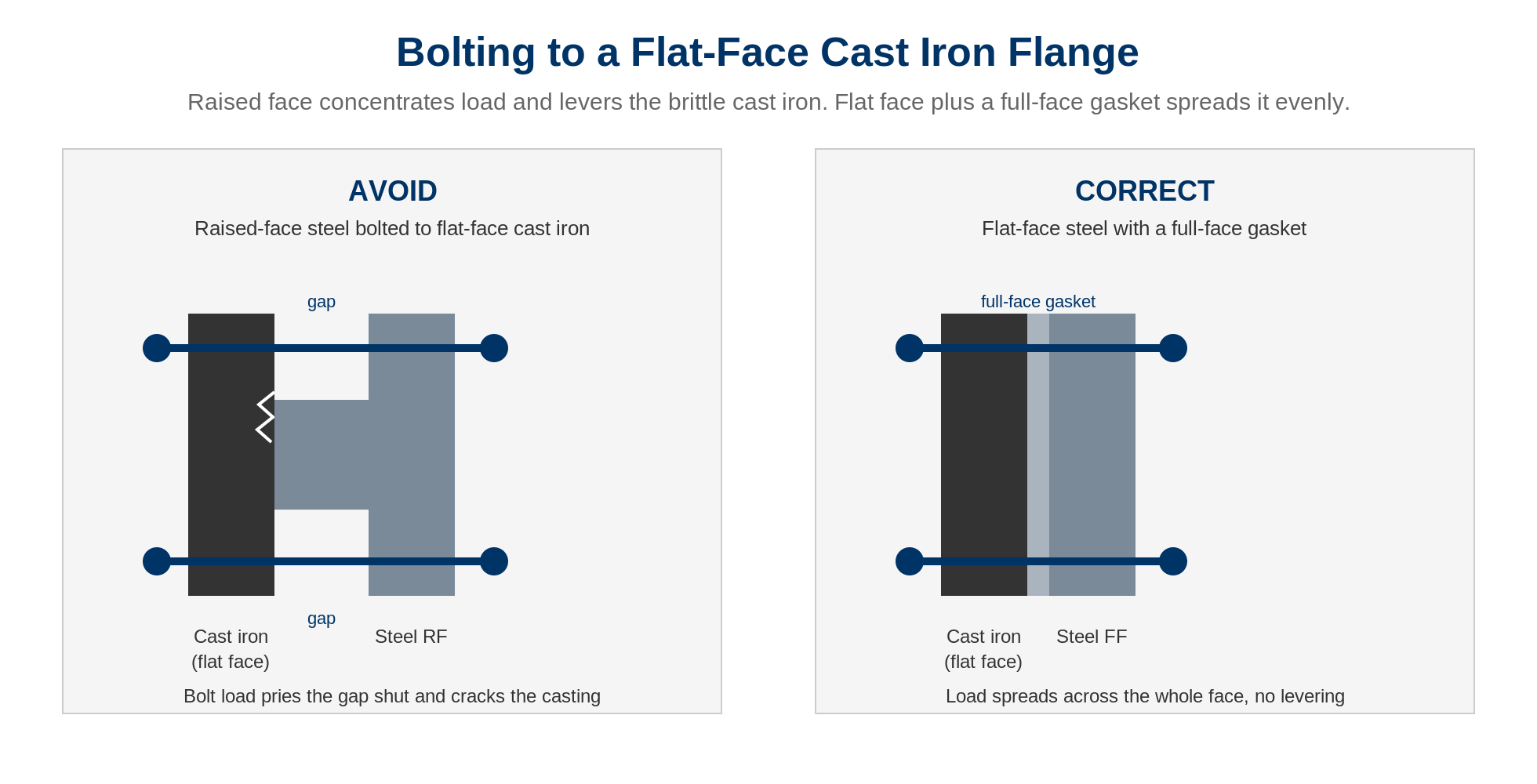

The mistake is bolting a standard raised face (RF) steel flange directly to that flat face cast iron. The raised face creates a small gap at the bolt circle, and as you torque the bolts down, that gap levers the brittle cast iron flange and can crack it. ASME B31.1 addresses this directly: when you connect to a flat face cast iron flange, either remove the raised face from the steel flange or, more practically, use a flat face steel companion flange with a full-face gasket so the load spreads evenly across the whole face. We get into the geometry of this in our raised face vs. flat face guide, but the rule for the mechanical room is simple: cast iron equipment gets flat face steel flanges and full-face gaskets, not raised face.
Gaskets follow the same logic. Hydronic water service is usually sealed with non-metallic full-face gaskets in EPDM or a similar elastomer rated for the system temperature. Only a flat face gasket belongs on a flat face flange.
Slip-On or Weld Neck
Both show up in HVAC, and the choice of which style is part cost, part spec. Slip-on flanges are cheaper, easier to fit up, and forgiving on alignment, which makes them popular on low-pressure water systems where nobody is worried about pushing the pressure-temperature envelope. The welds on the hubs are simpler to manage than the buttweld configuration. Plenty of commercial hydronic jobs run slip-on flanges and never have an issue.
That said, some engineering specs disallow slip-on entirely and require weld neck, on the logic that weld neck gives a stronger, fatigue-resistant joint with a smoother flow transition. If you are buying to a spec, read it before you assume slip-on is acceptable. Our slip-on vs. weld neck comparison lays out the trade-offs in detail.
A Quick Reference for the Mechanical Room
Connection or System | Typical Flange | Notes |
Chilled / condenser / hot water mains | Class 150 A105, weld neck or slip-on | Low pressure; Class 150 covers most service |
Cast iron pump or valve body | Flat face steel, full-face gasket | Never bolt RF to flat face cast iron |
High-rise low-zone connections | Class 150 or 300 | Static head can push class up at the base |
Steam / high-temp heating | Class 150 or higher | Pressure and temperature drive the class |
Small branch piping | Often grooved/threaded | Flanges appear as pipe size grows |
The Bottom Line
HVAC is not high-pressure refinery work, and the flange spec reflects that: mostly Class 150 carbon steel, sealed with elastomer gaskets, joining a building's water loops to its big equipment. The two things that actually cause callbacks are missing the cast iron rule and assuming slip-on is allowed when the spec says weld neck. Get those right and the rest is routine.
