Every headline about the AI buildout talks about chips, megawatts, and land. Almost none of them talk about the part that keeps the whole thing from melting: water, and the miles of large-diameter pipe that moves it. That pipe is flanged, and that is where this stops being someone else's news story and starts being ours.
The numbers aren’t exactly small potatoes. U.S. data centers consumed an estimated 21 billion liters of water directly in 2014 and roughly 66 billion liters by 2023, and the AI surge has only steepened the curve since. Data center capital spending is now running well past half a trillion dollars a year, with 2026 projections climbing toward $800 billion. A growing share of that spend is cooling infrastructure, and most new hyperscale builds announced over the past two years now specify direct-liquid-cooling-ready systems as a baseline requirement, as other methods aren’t as practical. All of that heat has to go somewhere, and that somewhere is a water loop piping system.
Why Cooling Is a Piping Problem
A modern AI hall can pack racks pulling more power than an entire legacy data center floor. Air alone cannot carry that heat away, which is why the industry is moving hard toward liquid cooling: direct-to-chip cold plates, rear-door heat exchangers, and in some cases immersion. But liquid cooling at the chip is only the last few feet. Behind it sits a building-scale water system: chilled water loops, condenser water loops, cooling towers, and the headers that tie them together.
Those headers are not made like your run of the mill garden hose. To move thousands of gallons per minute, main distribution lines commonly run between 18 to 48 inches in diameter, with secondary branches scaling down to 4 inches and smaller using piping reductions. Every place two of those pipe sections meet a valve, a pump, a chiller, or each other, there is a flanged joint. A single large facility might operate with thousands of them.
Two Loops, Two Sets of Specs
The water side of a data center generally splits into two systems, and they do not spec out the same way.
The chilled water loop is the closed side. It circulates treated water (often with glycol and corrosion inhibitors) between the chillers and the cooling equipment near the racks. Because it is closed and the water is conditioned, corrosion is managed, and the pressures are modest. Most chilled water loops operate well below 150 psi and therefore require low pressure flanges.
The condenser water loop rejects heat to the cooling towers. It sees more oxygen, more makeup water, and harsher conditions, so material selection matters more here. Condenser systems are frequently built from modern piping to ANSI/AWWA C150/A21.50 and C151/A21.51, joined with Class 150 forged carbon steel weld neck flanges in ASTM A105. The same weld neck flanges that show up in any process plant are doing the work here too.
Where AWWA Flanges Come In
This is the part procurement teams miss until the submittals come back. A lot of the large-diameter water side of a data center does not need to be B16.5 per ASME, but rather waterworks spec. That means AWWA flanges, and most often AWWA C207 or C228. In this case, a 20” weld neck might substitute out for a 20” AWWA ring flange.
For chilled water service, AWWA C207 Class D, rated for 150-175 psi, is the common choice. The logic is simple: the loops run a little closer to atmospheric pressure, so Class D carries a comfortable safety margin while keeping cost and weight reasonable on big 24, 36, and 48 inch headers. It is built for exactly this kind of continuous-duty, closed-loop water service. The class-by-class detail of C207 (B, D, E, F, and where each one belongs) is its own conversation, and one we will walk through in a dedicated post. For the data center buyer, the headline is that the cooling loop pulls you into the AWWA world, not just the ASME one, and the two have different drilling, ratings, and tolerances.
What This Means If You Are Buying
The data center build cycle is fast and unforgiving. Pipe and flange packages get ordered against aggressive schedules, and a mismatch between an ASME drilling and an AWWA bolt pattern, or a wrong class on a 36 inch header, is not a quick fix at that size. A few things worth nailing down early:
Decision Point | What to Confirm | Common Data Center Answer |
Which loop | Chilled (closed) vs. condenser (open) | Different material and corrosion needs per loop |
Standard | ASME B16.5 vs. AWWA C207 | Large-diameter water side is usually AWWA |
Pressure class | Actual operating pressure vs. rating | C207 Class D (150 psi) common for chilled water |
Size range | Header vs. branch | 18 to 48 inch headers, down to 4 inch branches |
Material | Carbon steel, ductile iron, coatings | A105 weld neck, ductile iron to C150/C151 |
Lead time | Large-diameter availability | Big flanges are not always shelf stock |

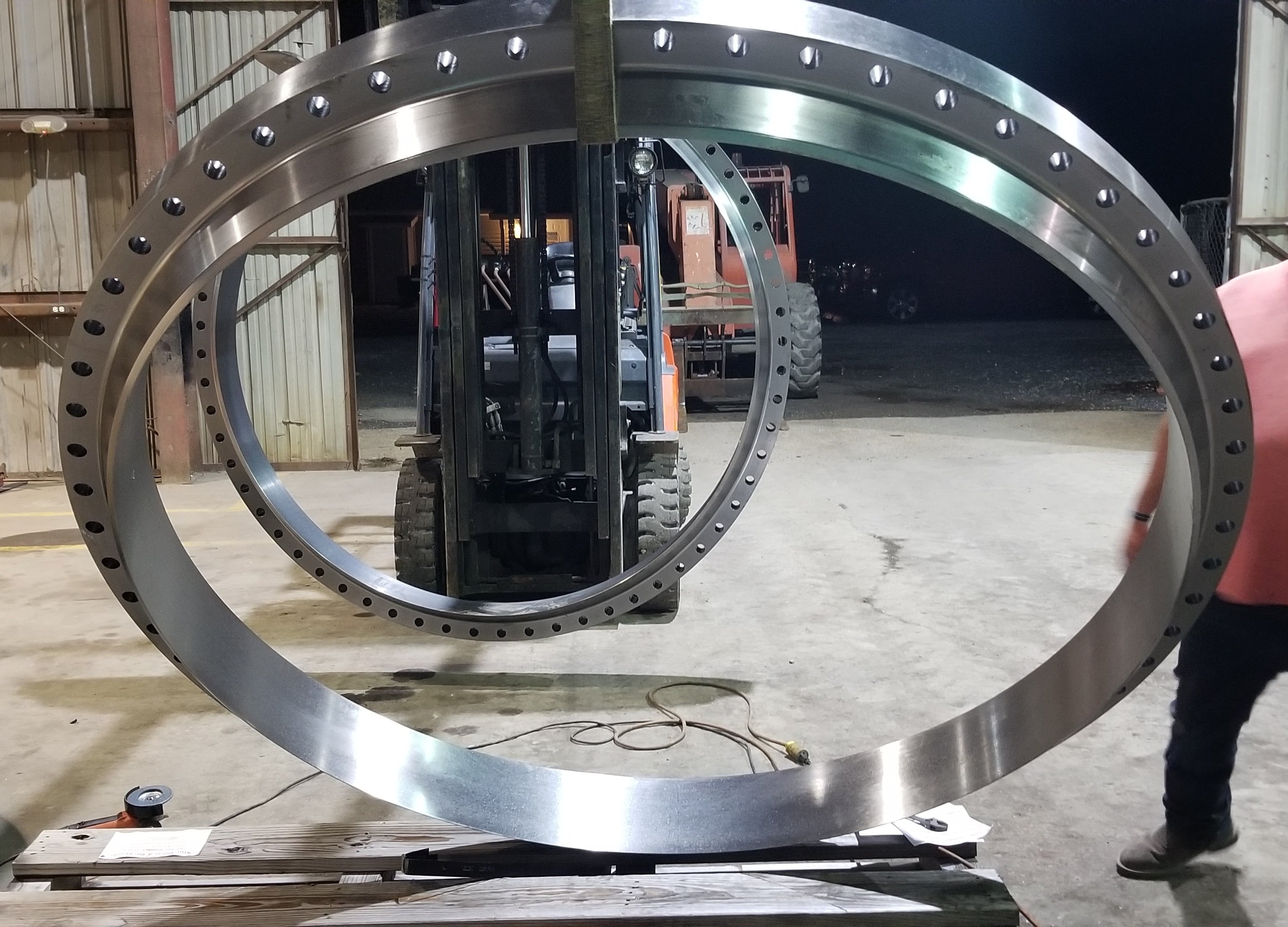

The large-diameter end of this is where projects get caught. A 48 inch flange is not something most suppliers keep heavily stocked in their inventory due to spacing constraints, and the data center pipeline is competing for the same capacity everyone else is, including vessel manufacturers and even municipal water supplies. Confirming size, class, standard, and material before the schedule locks is the difference between a loop that bolts up and a delay for your project on the critical portion of it.
The Bottom Line
The AI story is a water story, and the water story is a flange story. Hyperscale cooling is pulling enormous volumes of large-diameter, flanged pipe into the market, splitting buyers between ASME process flanges and AWWA waterworks flanges depending on the loop. The plants that get ahead of it are the ones treating the cooling system as the heavy industrial piping project it actually is, not an afterthought to the server order.
If you are scoping a cooling loop or pricing large-diameter headers and want to get the standards and lead times right the first time, reach out to our team. We stock and produce both ASME and AWWA flanges in the large sizes these projects run on, from 4 inch branches to headers most suppliers will not quote.
