45° 3R Elbow Dimensions
A 45° elbow on a three-diameter centerline radius. It combines the gradual half turn of a 45 with the wide sweep of a 3R bend, for lines where both the direction change and the erosion rate have to be kept gentle.
A specialty turn.
You reach for this when a 45° offset sits in abrasive or high-velocity service and a standard 1.5D bend would wear at the outside of the turn. Conveying lines, slurry headers, and sand-laden production piping are the usual homes for it.
Check the space.
The three-diameter radius makes this a long fitting for the turn it produces. Confirm the center-to-end from the table before committing the spool layout.

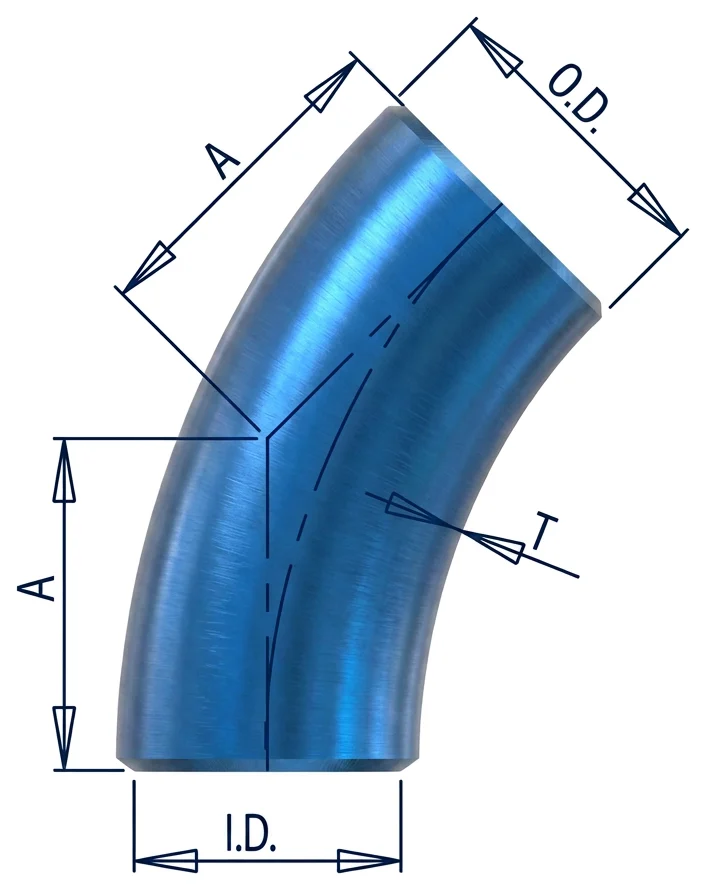

76 sizes across 4 schedules · dimensions in inches, weights in pounds · ASME B16.9
Schedule STD
| Nom. Pipe Size | Outside Diameter O.D. | Inside Diameter I.D. | Wall Thickness T | Center to End A | Pipe Schedule Number | Approx. Weight in Pounds Lbs. |
|---|---|---|---|---|---|---|
| ¾ | 1.05 | 0.824 | 0.113 | 0.94 | 40 | 0.50 |
| 1 | 1.32 | 1.054 | 0.133 | 1.25 | 40 | 0.70 |
| 1¼ | 1.66 | 1.380 | 0.140 | 1.56 | 40 | 1.00 |
| 1½ | 1.90 | 1.610 | 0.145 | 1.88 | 40 | 1.30 |
| 2 | 2.38 | 2.072 | 0.154 | 2.50 | 40 | 1.50 |
| 2½ | 2.88 | 2.474 | 0.203 | 3.12 | 40 | 1.75 |
| 3 | 3.50 | 3.068 | 0.216 | 3.75 | 40 | 3.00 |
| 3½ | 4.00 | 3.548 | 0.226 | 4.38 | 40 | 5.00 |
| 4 | 4.50 | 4.026 | 0.237 | 5.00 | 40 | 9.00 |
| 5 | 5.56 | 5.044 | 0.258 | 6.19 | 40 | 16.00 |
| 6 | 6.62 | 6.060 | 0.280 | 7.44 | 40 | 22.50 |
| 8 | 8.62 | 7.976 | 0.322 | 9.94 | 40 | 45.00 |
| 10 | 10.75 | 10.020 | 0.365 | 12.44 | 40 | 80.00 |
| 12 | 12.75 | 12.000 | 0.375 | 14.88 | * | 120.00 |
| 14 | 14.00 | 13.250 | 0.375 | 17.38 | 30 | 150.00 |
| 16 | 16.00 | 15.250 | 0.375 | 19.88 | 30 | 193.00 |
| 18 | 18.00 | 17.250 | 0.375 | 22.38 | * | 248.00 |
| 20 | 20.00 | 19.250 | 0.375 | 24.88 | 20 | 308.00 |
| 24 | 24.00 | 23.250 | 0.375 | 29.81 | 20 | 440.00 |
Schedule XS
| Nom. Pipe Size | Outside Diameter O.D. | Inside Diameter I.D. | Wall Thickness T | Center to End A | Pipe Schedule Number | Approx. Weight in Pounds Lbs. |
|---|---|---|---|---|---|---|
| ¾ | 1.05 | 0.742 | 0.154 | 0.94 | 80 | 0.16 |
| 1 | 1.32 | 0.962 | 0.179 | 1.25 | 80 | 0.28 |
| 1¼ | 1.66 | 1.278 | 0.191 | 1.56 | 80 | 0.45 |
| 1½ | 1.90 | 1.500 | 0.200 | 1.88 | 80 | 0.61 |
| 2 | 2.38 | 1.944 | 0.218 | 2.50 | 80 | 1.20 |
| 2½ | 2.88 | 2.328 | 0.276 | 3.12 | 80 | 2.00 |
| 3 | 3.50 | 2.900 | 0.300 | 3.75 | 80 | 3.30 |
| 3½ | 4.00 | 3.364 | 0.318 | 4.38 | 80 | 4.50 |
| 4 | 4.50 | 3.826 | 0.337 | 5.00 | 80 | 6.20 |
| 5 | 5.56 | 4.810 | 0.375 | 6.19 | 80 | 10.50 |
| 6 | 6.62 | 5.756 | 0.432 | 7.44 | 80 | 17.00 |
| 8 | 8.62 | 7.620 | 0.500 | 9.94 | 80 | 34.30 |
| 10 | 10.75 | 9.750 | 0.500 | 12.44 | 60 | 53.50 |
| 12 | 12.75 | 11.750 | 0.500 | 14.88 | * | 77.60 |
| 14 | 14.00 | 13.000 | 0.500 | 17.38 | * | 100.00 |
| 16 | 16.00 | 15.000 | 0.500 | 19.88 | 40 | 134.00 |
| 18 | 18.00 | 17.000 | 0.500 | 22.38 | * | 170.00 |
| 20 | 20.00 | 19.000 | 0.500 | 24.88 | 30 | 209.00 |
| 24 | 24.00 | 23.000 | 0.500 | 29.81 | * | 302.00 |
Schedule 40
| Nom. Pipe Size | Outside Diameter O.D. | Inside Diameter I.D. | Wall Thickness T | Center to End A | Pipe Schedule Number | Approx. Weight in Pounds Lbs. |
|---|---|---|---|---|---|---|
| ¾ | 1.05 | 0.824 | 0.113 | 0.94 | 40 | 0.50 |
| 1 | 1.32 | 1.054 | 0.133 | 1.25 | 40 | 0.70 |
| 1¼ | 1.66 | 1.380 | 0.140 | 1.56 | 40 | 1.00 |
| 1½ | 1.90 | 1.610 | 0.145 | 1.88 | 40 | 1.30 |
| 2 | 2.38 | 2.072 | 0.154 | 2.50 | 40 | 1.50 |
| 2½ | 2.88 | 2.474 | 0.203 | 3.12 | 40 | 1.75 |
| 3 | 3.50 | 3.068 | 0.216 | 3.75 | 40 | 3.00 |
| 3½ | 4.00 | 3.548 | 0.226 | 4.38 | 40 | 5.00 |
| 4 | 4.50 | 4.026 | 0.237 | 5.00 | 40 | 9.00 |
| 5 | 5.56 | 5.044 | 0.258 | 6.19 | 40 | 16.00 |
| 6 | 6.62 | 6.060 | 0.280 | 7.44 | 40 | 22.50 |
| 8 | 8.62 | 7.976 | 0.322 | 9.94 | 40 | 45.00 |
| 10 | 10.75 | 10.020 | 0.365 | 12.44 | 40 | 80.00 |
| 12 | 12.75 | 11.938 | 0.406 | 14.88 | 40 | 160.00 |
| 14 | 14.00 | 13.124 | 0.438 | 17.38 | 40 | 270.00 |
| 16 | 16.00 | 15.000 | 0.500 | 19.88 | 40 | 360.00 |
| 18 | 18.00 | 16.876 | 0.562 | 22.38 | 40 | 490.00 |
| 20 | 20.00 | 18.812 | 0.594 | 24.88 | 40 | 615.00 |
| 24 | 24.00 | 22.624 | 0.688 | 29.81 | 40 | 775.00 |
Schedule 80
| Nom. Pipe Size | Outside Diameter O.D. | Inside Diameter I.D. | Wall Thickness T | Center to End A | Pipe Schedule Number | Approx. Weight in Pounds Lbs. |
|---|---|---|---|---|---|---|
| ¾ | 1.05 | 0.742 | 0.154 | 0.94 | 80 | 0.16 |
| 1 | 1.32 | 0.962 | 0.179 | 1.25 | 80 | 0.28 |
| 1¼ | 1.66 | 1.278 | 0.191 | 1.56 | 80 | 0.45 |
| 1½ | 1.90 | 1.500 | 0.200 | 1.88 | 80 | 0.61 |
| 2 | 2.38 | 1.944 | 0.218 | 2.50 | 80 | 1.20 |
| 2½ | 2.88 | 2.328 | 0.276 | 3.12 | 80 | 2.00 |
| 3 | 3.50 | 2.900 | 0.300 | 3.75 | 80 | 3.30 |
| 3½ | 4.00 | 3.364 | 0.318 | 4.38 | 80 | 4.50 |
| 4 | 4.50 | 3.826 | 0.337 | 5.00 | 80 | 6.20 |
| 5 | 5.56 | 4.810 | 0.375 | 6.19 | 80 | 10.50 |
| 6 | 6.62 | 5.756 | 0.432 | 7.44 | 80 | 17.00 |
| 8 | 8.62 | 7.620 | 0.500 | 9.94 | 80 | 34.30 |
| 10 | 10.75 | 9.562 | 0.594 | 12.44 | 80 | 150.00 |
| 12 | 12.75 | 11.374 | 0.688 | 14.88 | 80 | 200.00 |
| 14 | 14.00 | 12.500 | 0.750 | 17.38 | 80 | 337.50 |
| 16 | 16.00 | 14.312 | 0.844 | 19.88 | 80 | 450.00 |
| 18 | 18.00 | 16.124 | 0.938 | 22.38 | 80 | 612.50 |
| 20 | 20.00 | 17.938 | 1.031 | 24.88 | 80 | 768.75 |
| 24 | 24.00 | 21.562 | 1.219 | 29.81 | 80 | 968.75 |
Materials We Supply
45° 3R Elbow to ASME B16.9 in the grades below. Tell us the service and we will confirm the right one.
| Material | Specification | Typical Service |
|---|---|---|
| Carbon Steel | ASTM A234 WPB / WPC | General process, steam, oil and gas gathering and utility lines |
| Low-Temp Carbon Steel | ASTM A420 WPL6 | Cold service to −50°F; LNG and northern pipeline work |
| Chrome-Moly Alloy | ASTM A234 WP11 / WP22 / WP91 | Elevated temperature; refinery heaters, power plant steam |
| Stainless Steel | ASTM A403 WP304/304L, WP316/316L | Corrosive service, chemical, food and beverage, water treatment |
| Duplex & Super Duplex | ASTM A815 UNS S31803 / S32750 | Chloride and seawater service, offshore, desalination |
Common Questions
What is a 45 degree 3R elbow?
A 45° butt weld elbow whose centerline bend radius is three times the nominal pipe diameter, rather than the 1.5 times used on a standard long radius elbow. The wider sweep reduces turbulence and spreads erosion over more of the outside wall.
When is a 3R worth it over a standard 45?
When the line is abrasive, high velocity, or carries solids, and wear at the bends is what drives your maintenance interval. In clean, moderate-velocity service the standard 1.5D fitting is the sensible choice.
Do you stock 45° 3R elbows?
Availability depends on size, schedule, and material. Send us the size, schedule, and grade and we will confirm what is on the floor and what would be a mill order.
