Name: Intermediate Connection Flanges
Brand: Texas Flange

Question 1

What is a intermediate connection flange used for?

Accepted Answer

Intermediate Connection Flanges are used throughout industrial piping systems for the applications described above. Texas Flange stocks the full range of sizes, pressure classes, and materials.

Question 2

What materials are available for intermediate connection flanges?

Accepted Answer

Over 50 material grades including carbon steel (A105, A350 LF2), stainless (304/L, 316/L, 321, 347), chrome/alloy (F11, F22, F5, F9, F91), duplex (F51, F53, F55), and nickel alloys (Monel, Inconel, Hastelloy).

Question 3

What standards do you supply intermediate connection flanges to?

Accepted Answer

ASME B16.5 (1/2"–24"), ASME B16.47 Series A & B (26"–60"), API 6A/6B/6BX, AWWA C207, MSS-SP-44, and custom drawings on request.

Question 4

Do you supply both domestic and imported flanges?

Accepted Answer

Yes — we carry both U.S.-made (domestic) and import intermediate connection flanges. The right choice depends on your project's certification, budget, and end-user requirements — we will help you match the spec.

Question 5

How fast can I get a quote on intermediate connection flanges?

Accepted Answer

Same-day in most cases. Send drawings or specs to sales@texasflange.com or call 281-484-8325.

Intermediate Connection Flange

Intermediate Connection Flanges

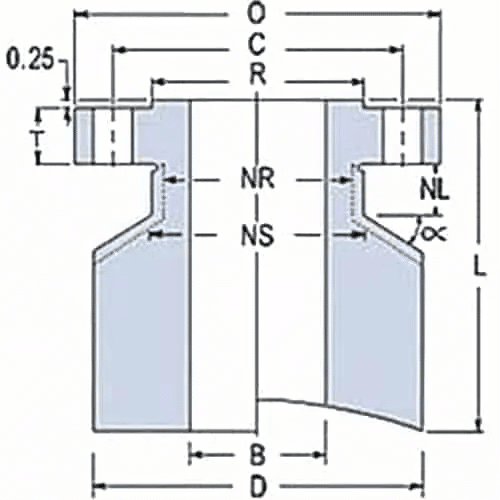

INTERMEDIATE BARREL-I3-.25

INTERMEDIATE BARREL-I3-.06

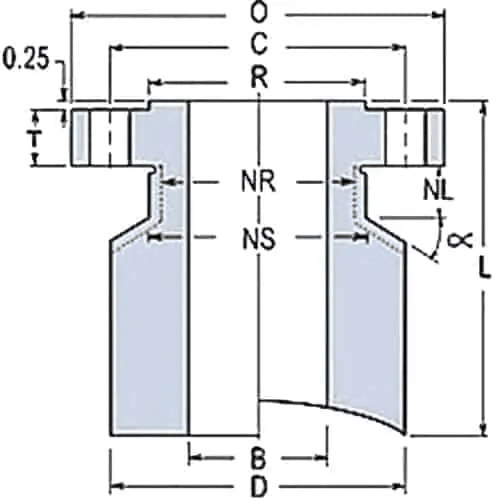

INTERMEDIATE BARREL-I2-.25

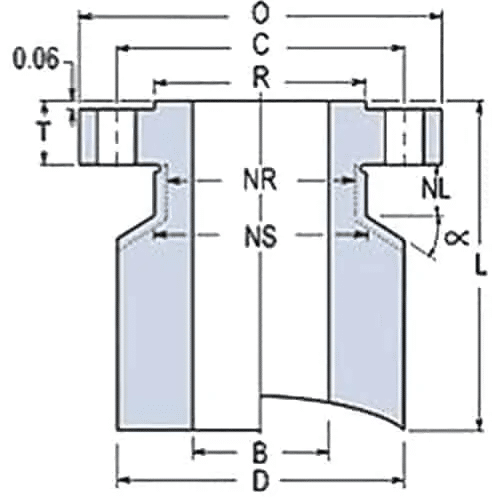

INTERMEDIATE BARREL-I2-.06

INTERMEDIATE BARREL-I1-.25

INTERMEDIATE BARREL-I1-.06

INTERMEDIATE CONNECTION ANGLE NOTE

ANSI B16.47 SERIES A FLANGE CLASSES

Choose your pressure class below
